Save 5% of your hard earned dollars with this stripped down DLED7-BI, 3 light kit. This includes only the essentials, including DT7-BI-DMX-U ballasts for DMX or manual control. A set of barn doors and a light shield ring for each light also comes in the box.

If you love your old "Dedos", and are used to having a classic 150 in-hand (DLH4), then this is the obvious lateral move to LED. Of course, the flexibility of continuously changing anywhere between 2700K to 6500K is a major difference between this and classic. The DLED7 series is an all-around engineering marvel. The light is constantly consuming 90w of power from the DT7-BI ballast and alternating it between 2, 90w diode sets in the array. This means no matter what diodes are on at any given time the light is always giving you what you've paid for; not 45w on one color, and 45w on another at whatever color temperature you are at (dimmable of course). To output this amount of light from such a small enclosure, the "Turbo" series of lights are "actively" cooled running silent fans without disrupting the most delicate of audio scenarios. Out of the box the light has a focusing range of 60°- 6° (1:20 light ratio); based on this element you're in a class of your own. The DLED7 series of heads fits accessories from the DLH4, DLHM4-300 and DLH200 (M Size) classics.

For 20 years, ask Classic users and they'll tell you they don't go on to any shoot without their personal kit of dedos. You'll feel the same way about you DLED7's.

Contact us if you want to make this a mono-color, daylight or tungsten set of lights.

KIT INCLUDES:

• 3 - DLED7-BI - 90w LED focusing light head
• 3 - DT7-BI-DMX - AC Ballasts with DMX integration
• 3 - DBD8 - 8 leaf barn door
• 3 - DPLS - Light shield ring

NOTE: See optional hard case options above. With this option Dedolight California customizes the case to fit the light set. By default the case is not a part of the set.

KEY FEATURES

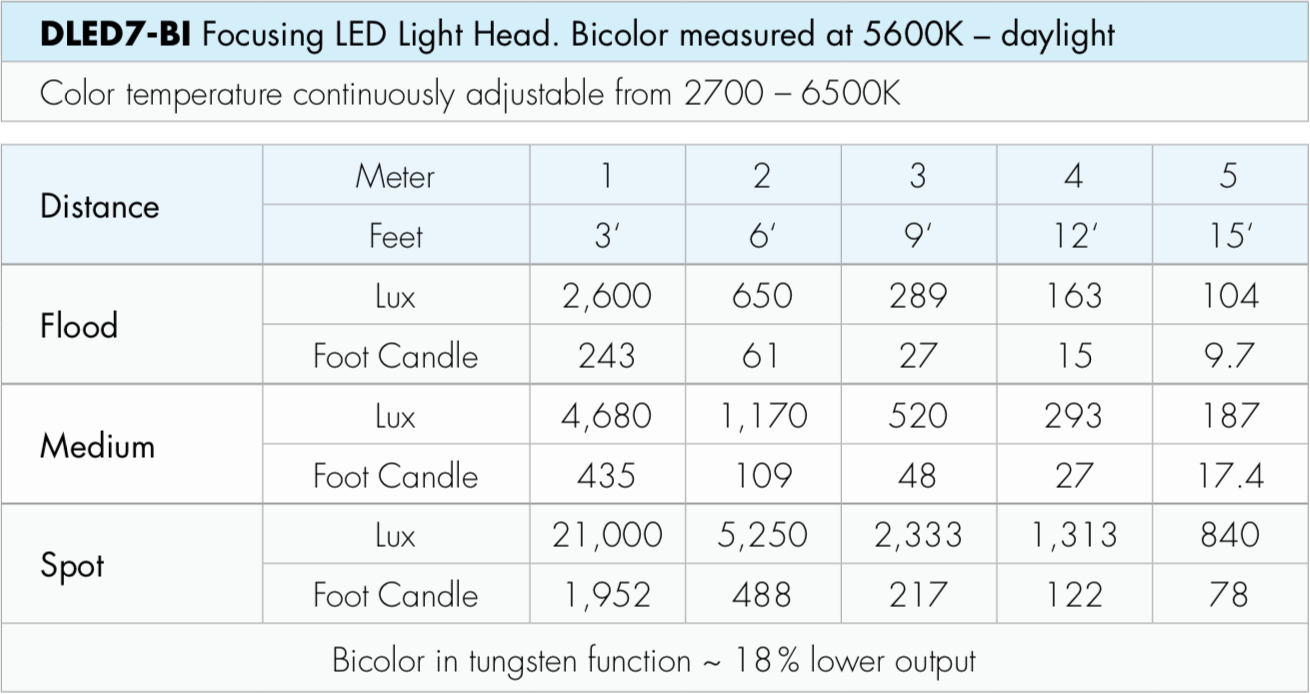

PHOTOMETRICS

BALLAST

DT7-BI-DMX

For DLED7-BI, DMX users. This is the ballast required to remotely power and control the almighty DLED7-BI light head with DMX controllers. This AC ballast allows continuous dimming (100-1%) and color control (2700-6500k). The DT7-BI-DMX has 512 available channels. The dimmer uses two DMX channels; set the channel for dimming control and it automatically uses the following number for color changing. It auto-terminates so no terminating resistors are necessary for use. Use the digital display for manual dimming "0-99", and color "27-65".

SUGGESTED ACCESSORIES:

• DPOW6XLR-3 - 10' Ballast-to-head extension cable
• DPOW6XLR-10 - 30' ballast-to-head extension cable
• Dedolight California makes custom cables by request. Contact us for requests

ACCESSORIES

• DP1.2 - Imager projector with 85mm lens (previously the DP1.1)
• DP2.2 - Dedicated shutter projector with 85mm lens (previously the DP2.1)
• DWAFX - Directional beam spreader.
• DPBA-710 - Parallel Beam Intensifier (up to 163% increase in spot)
• DPBA-714 - Parallel Beam Intensifier (up to 264% increase in spot)
• DLWAR - Wide angle lens adapter with rotating barn doors (takes flood from 60°-90°)

Search for all "M" Size accessories to build-out your DLED7!
