PHEON LUX M48C MAX - AIR LUX MAX - HIGH OUTPUT SERIES

KIT INCLUDES:

• M48C Max inflatable Pixel-controlled light head
• M800C-L Max Ballast Controller
• Frame with pin
• Standard diffuser / lamp head diffusion
• Fabric control grid / Egg-crate
• Skirts
• 7 m signal cable
• AC cable
• USB data cable

• Rechargeable DC pump
• AC air pump
• Protective mat for air pumping
• Vinyl trolley bag

Estimated Kit Weight - 32.3 kg (71.2 lbs)

Light Head Weight - 6.13 kg (13.5 lbs)

M48C Max Full-Color Inflatable Soft Light

The M48C Max is a 4 ft x 8 ft full-color inflatable fixture designed for fast deployment and broad directional soft-light output across a large rectangular surface. With an actual inflated size of 220 × 114 × 15 cm (86.6 × 44.9 × 5.9 in), it creates an expansive soft source ideal for cinematic key lighting, environmental lighting, overhead soft-light applications, stage production, large interview environments, and medium-to-large set work.

The M48C Max incorporates a sophisticated RGBWY full-spectrum color engine with continuous CCT adjustment from 1700K to 20000K, extended x,y chromaticity control, calibrated G/M adjustment (±100), HSI color mixing, and more than 600 digital color filters. Engineered for cinematic color reproduction, it delivers TLCI 98, CRI 96, TM-30 Rf 94 / Rg 101, SSI 85T / 74D, exceptional skin-tone rendering across R9 (91), R13 (94), and R15 (95), and calibrated white-light performance with Δuv -0.0006 for precise fixture matching.

The M48C Max delivers 800W of output in a large-format rectangular design that combines broad coverage with directional control. Its elongated shape makes it particularly effective for creating natural picture window-light style illumination, broad lighting zones across larger environments, and medium-to-large format book-light workflows where substantial source size and output are required.  If you are looking for a large square shape instead of rectangle, check-out the M44CMAX - its 4ft x 4ft sibling.

About the Air Lux MAX Series

The Pheon Lux M48C Max is part of the Air Lux Max Series, a family of full-color inflatable pixel programmable LED soft lights designed for professional film, broadcast, studio, and location production. Combining a lightweight air-cushion structure with advanced color control, the Max Series delivers a large soft source that deploys quickly, adapts easily to space-limited environments, integrates into modern wired and wireless workflows, and packs compactly for transport.

With full-spectrum RGBWW color mixing, continuous CCT adjustment, green/magenta correction, x,y color control, dynamic multi-pixel effects, and support for professional wired and wireless control protocols, the Air Lux Max Series is designed not only as a soft-light platform, but as a coordinated lighting ecosystem.

The Air Max Series combines professional pixel-mapping workflows, multi-zone DMX personalities, CRMX synchronization, and advanced color-management tools designed for modern cinema, broadcast, virtual production, and effects-driven lighting environments.

Pheon Lux fixtures are engineered for creating large-scale synchronized lighting environments where multiple fixtures can operate as a unified system. Advanced multi-pixel functionality allows users to generate preset or fully customized animated effects that extend across numerous fixtures simultaneously, creating coordinated movement, dynamic color transitions, environmental simulations, and large-scale lighting sequences for studio production, virtual production, live events, and cinematic effects work.

[TABS]

KEY FEATURES

• 4 ft x 8 ft full-color inflatable pixel LED soft light
• Large-format rectangular soft source for broad directional lighting applications
• Designed for film, broadcast, studio, photography, live event, and location production
• RGBWY full-spectrum color engine with advanced color-management capabilities
• Passive cooling provides completely silent operation
• Designed for applications ranging from cinematic key lighting to coordinated multi-light environments with synchronized multi-pixel animation capability
• Lightweight air-cushion structure for fast setup, compact transport, and efficient rigging
• Large rectangular soft-light surface creates smooth wrap and broad directional coverage
• Especially useful for medium-to-large format book-light workflows
• Effective for establishing broader lighting zones across larger sets and environments

PIXEL MAP

• 32 independently addressable pixel sections
• Configurable 1-160 channel DMX personalities
• Built-in pixel effects and dynamic lighting modes
• Supports synchronized multi-fixture pixel and color playback across unlimited fixtures operating within CRMX communication range
• 0-100% step-less high-frequency PWM dimming for flicker-free cinematic operation
• Compatible with DMX512 and Art-Net style professional control workflows where supported by the controller system
• Integrated control options include Pheon Link app, controller, Wi-Fi, 2.4G wireless, wired/wireless DMX512, and CRMX
• Built-in LumenRadio module for flexible wireless control options
• 210° beam angle for broad soft-light coverage

APPLICATIONS

The M48C Max is especially effective for cinematic key lighting, beauty work, overhead lighting, environmental lighting, stage production, interviews, large RGB environments, and medium-to-large format booklight systems requiring substantial source size and directional control.

The elongated rectangular source shape naturally lends itself to creating controlled window-light style illumination and broader lighting zones across larger sets, helping maintain smoother transitions and more even illumination across practical environments and talent.

Passive cooling allows silent operation with no internal fixture fans, making the fixture suitable for interviews, narrative production, sound-sensitive environments, and close-proximity placement near talent.

The inflatable air-cushion design allows large-format fixtures to pack considerably smaller than traditional framed soft-light systems while maintaining broad, soft-light characteristics and rapid deployment.

SPECIFICATIONS

OUTPUT

Photometric performance for the M48C Max is shown below.

ACCESSORIES

• Frame & pin
• Fabric control grid / egg-crate
• Skirts
• 7 m signal cable
• AC cable
• USB data cable

• Rechargeable DC pump (Tested UN38.3, IATA compliant for air transport).
• AC air pump
• Protective mat for air pumping
• Vinyl trolley bag

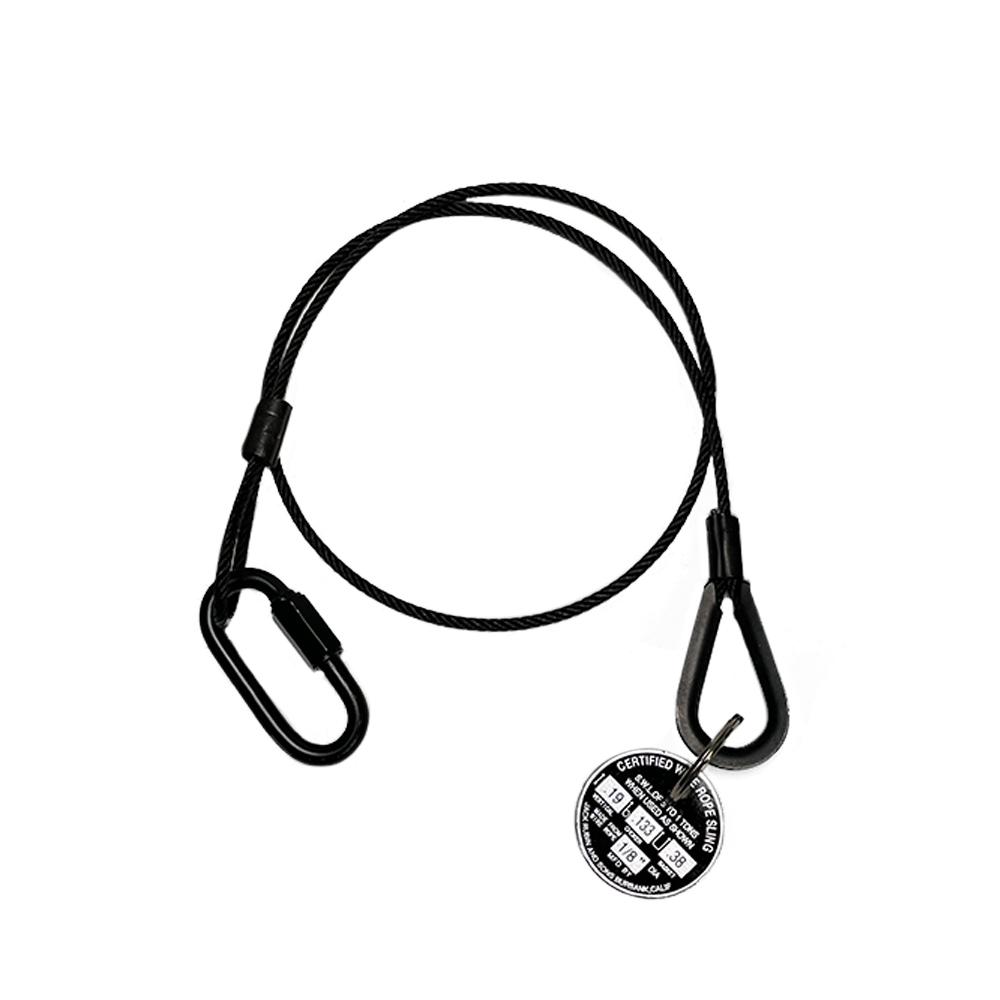

• Certified Safety Cable

DOWNLOADS

Access manuals, DMX profiles, GDTF files, software updates, firmware, and additional product resources directly from the Pheon Lux website.

Visit Pheon Lux Downloads & Support Resources
